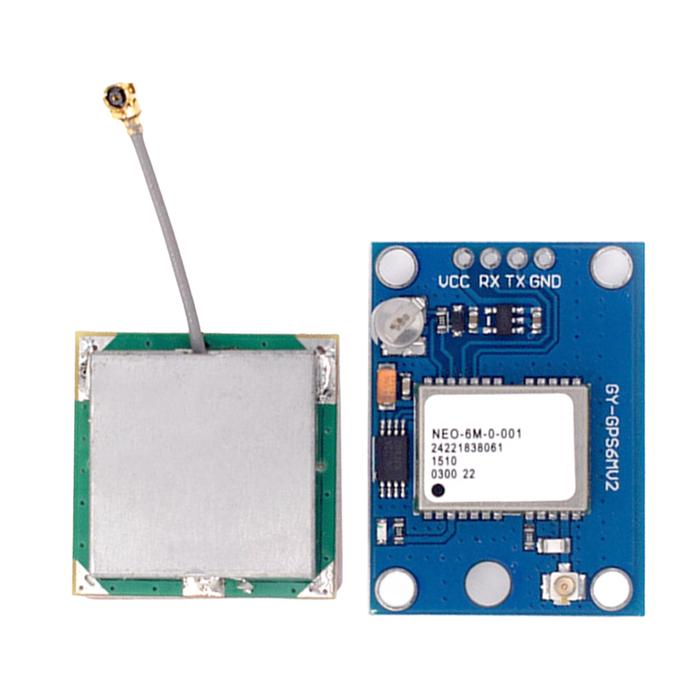

GY-NEO6MV2 NEO-6M GPS Module | High-Precision GPS with EEPROM & Large Antenna for Arduino, APM2, and Drones
KSh800.00 KSh900.00 -11%
● In stock (25 available)
| SKU | AT-0216 |
| Category | Wireless Devices |
| Availability | In stock |
| Shipping | Countrywide delivery · Free on orders over KSh10,000.00 |
Description
The GY-NEO6MV2 GPS Module is a high-precision satellite positioning module based on the Ublox NEO-6M chipset , designed for
Key Features
- Accurate and reliable GPS positioning with fast satellite acquisition.
- Large active antenna for better reception and stable signal.
- EEPROM memory retains user configuration after power-off.
- Compatible with multiple platforms: Arduino, APM2.5, STM32, ESP32, Raspberry Pi, and more.
- Ideal for drone navigation, robotics, and vehicle tracking systems .
Specifications
| Model | GY-NEO6MV2 GPS Module |
|---|---|
| Chipset | u-blox NEO-6M GPS receiver |
| Operating Voltage | 3.3V – 5V DC |
| Communication Interface | UART (TX, RX) |
| Default Baud Rate | 9600 bps |
| Positioning Accuracy | 2.5m (CEP) |
| Tracking Sensitivity | –161 dBm |
| Cold Start Time | < 38 seconds |
| Hot Start Time | < 1 second |
| Data Update Rate | 1 Hz (default), up to 5 Hz configurable |
| Built-in Memory | EEPROM for saving configuration |
| Antenna Type | Large active ceramic antenna |
| Backup Battery | CR1220 battery for retaining time and satellite data |
| LED Indicator | Fix status LED (blinks when satellite lock is achieved) |
| Communication Protocol | NMEA, UBX |
| Mounting Holes | For easy installation on flight controllers or Arduino boards |
| Dimensions | 27mm × 27mm × 8mm (approx.) |
