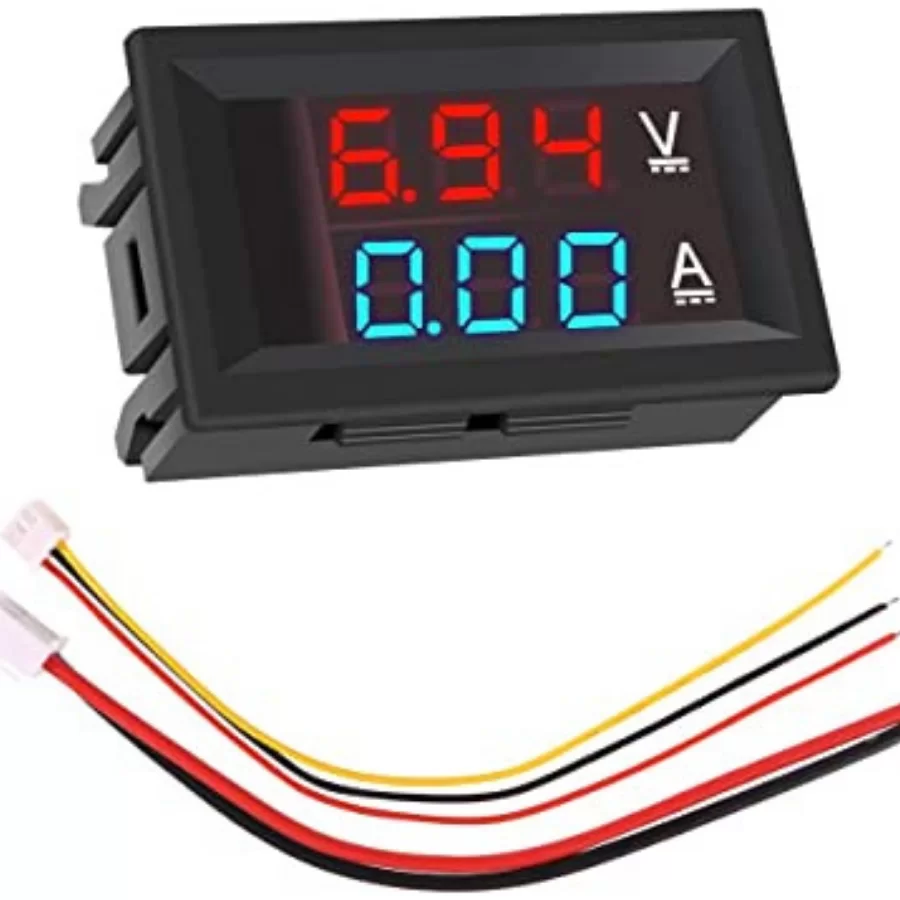

DC 0–100V 10A Digital Voltmeter Ammeter | Dual LED Voltage & Current Meter Panel for Arduino, Solar & Battery Monitoring Systems

KSh500.00 KSh600.00 -17%

● In stock (25 available)

SKU	AT-0233
Category	Electronic Components
Availability	In stock
Shipping	Countrywide delivery · Free on orders over KSh10,000.00

Description

The DC 0–100V 10A Dual Digital Voltmeter Ammeter is a compact, high-precision two-in-one voltage and current measurement module designed for monitoring DC power systems. It features dual LED displays — red for voltage and blue for current — allowing real-time monitoring of both parameters simultaneously. This panel meter is ideal for power supplies, battery monitoring, solar systems, DC motor drivers, and DIY electronics projects . It can measure voltages up to 100V DC and currents up to 10A DC , making it perfect for medium-range DC applications. The module includes pre-wired connections for quick setup and features a 0.28″ bright LED display for easy readability even in low-light condition

Key Features

Dual display for simultaneous voltage and current monitoring .
Wide measurement range (0–100V / 0–10A).
Easy installation with pre-soldered wires.
Bright and clear red/blue LED readout .
Low power consumption and long operational life.
Ideal for Arduino power testing, battery monitoring, and solar systems .

Specifications

Measurement Type	DC Voltage & Current (dual display)
Voltage Range	0V – 100V DC
Current Range	0A – 10A DC
Display Type	Dual 0.28″ LED display (red for voltage, blue for current)
Display Accuracy	±1% (typical)
Power Supply Voltage	4.5V – 30V DC (for display operation)
Wiring	Red: Power supply +
Black	Ground –
Yellow	Voltage measurement +
Thick Black/Thick Red	Current measurement terminals
Display Refresh Rate	~500ms
Mounting Type	Panel mount with rectangular cutout
Material	Durable ABS plastic shell
Working Temperature	–10°C to +65°C
Dimensions	Approx. 48mm × 29mm × 21mm
Compatibility	Works with Arduino, power supply systems, and DIY battery setups
