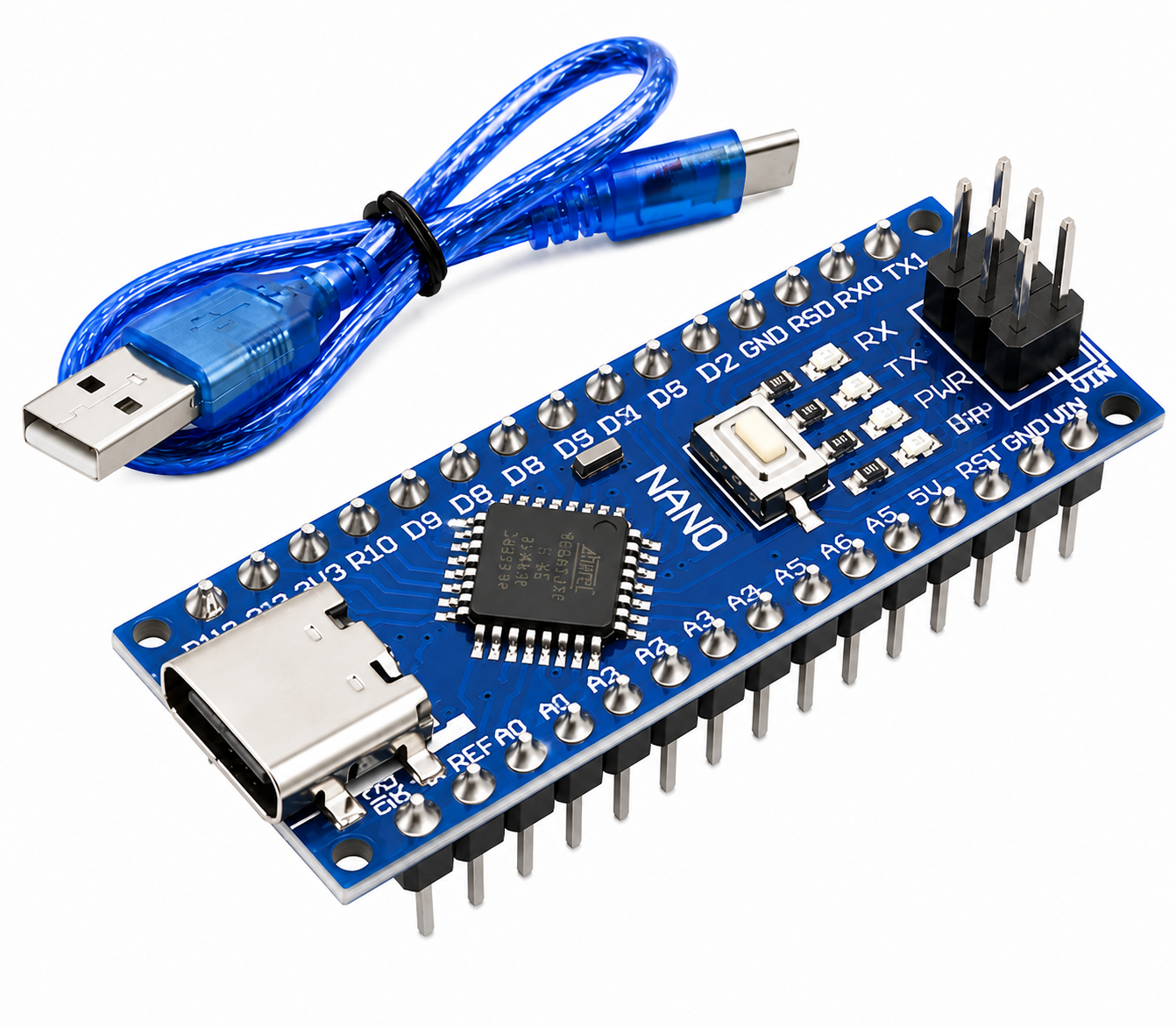

Arduino Nano V3.0 ATmega328P CH340 Type-C Development Board with USB Cable | Compact USB-C Microcontroller for Arduino Projects

KSh1,000.00

● In stock (24 available)

SKU	AT-0015
Category	Development Boards
Availability	In stock
Shipping	Countrywide delivery · Free on orders over KSh10,000.00

Description

The Arduino Nano V3.0 ATmega328P CH340 Type-C Development Board is a compact and versatile microcontroller platform designed for electronics prototyping, robotics, automation, IoT, and embedded system applications. Powered by the ATmega328P microcontroller and equipped with the CH340 USB-to-Serial converter, the board can be programmed through the Arduino IDE using its convenient USB Type-C interface. The Type-C connector provides a modern, reversible connection for programming and powering the board. The board provides 14 digital input/output pins, including 6 PWM outputs, along with 8 analog inputs. It also supports UART, SPI, and I²C communication, allowing easy integration with sensors,

Key Features

ATmega328P microcontroller
CH340 USB-to-Serial converter chip
USB Type-C connector for programming and power
Compact and breadboard-friendly design
14 digital input/output pins
6 PWM output channels
8 analog input channels
16MHz clock speed
Supports UART, SPI, and I²C communication
Compatible with the Arduino IDE
Suitable for sensors, displays, motors, and communication modules
Ideal for robotics, IoT, automation, and embedded electronics projects

Specifications

Microcontroller	ATmega328P
USB-to-Serial Chip	CH340
USB Connector	Type-C
Operating Voltage	5V
Recommended Input Voltage	7V–12V via VIN
Digital I/O Pins	14
PWM Outputs	6
Analog Inputs	8
Flash Memory	32KB
SRAM	2KB
EEPROM	1KB
Clock Speed	16MHz
Communication Interfaces	UART, SPI, I²C
Programming Software	Arduino IDE
