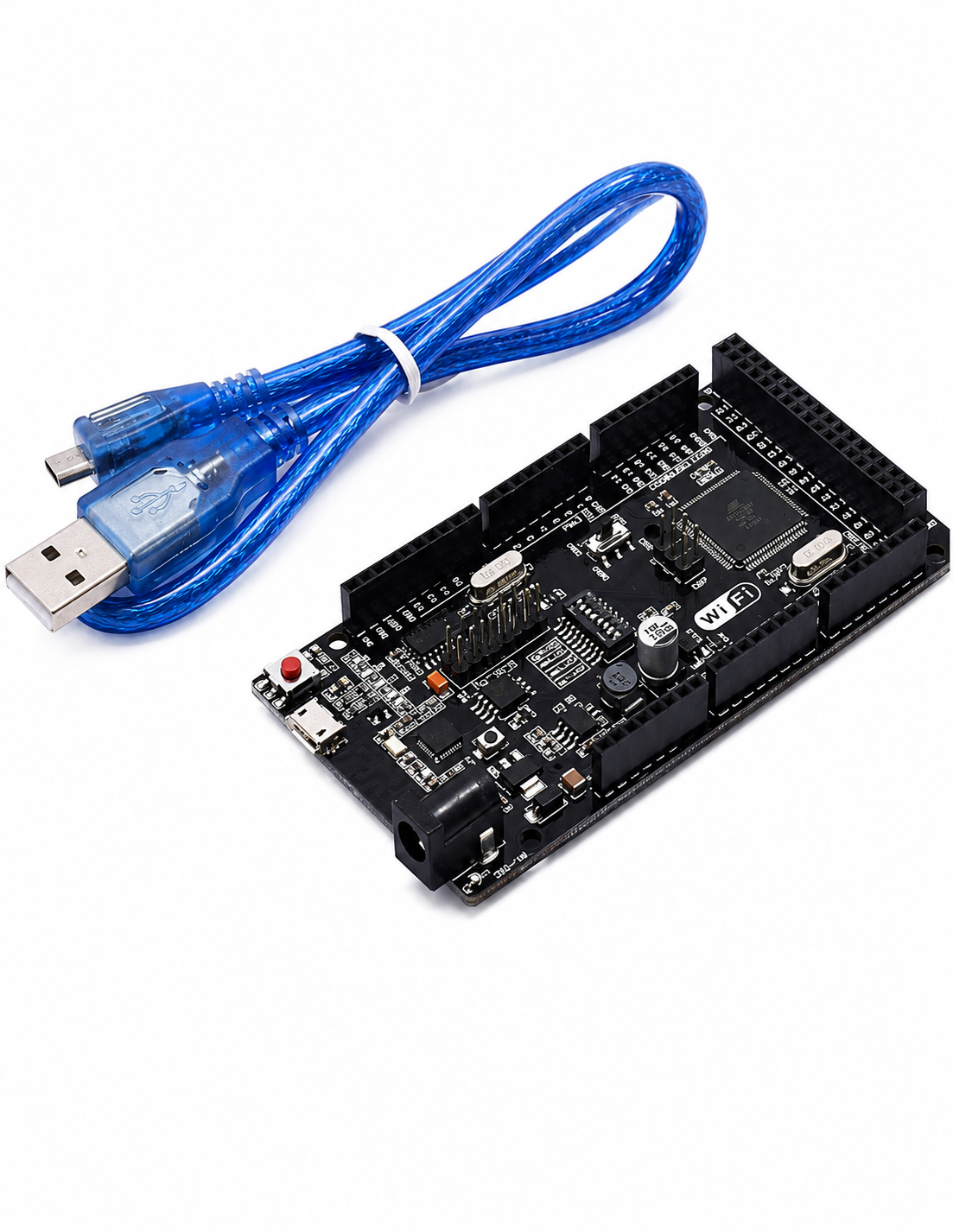

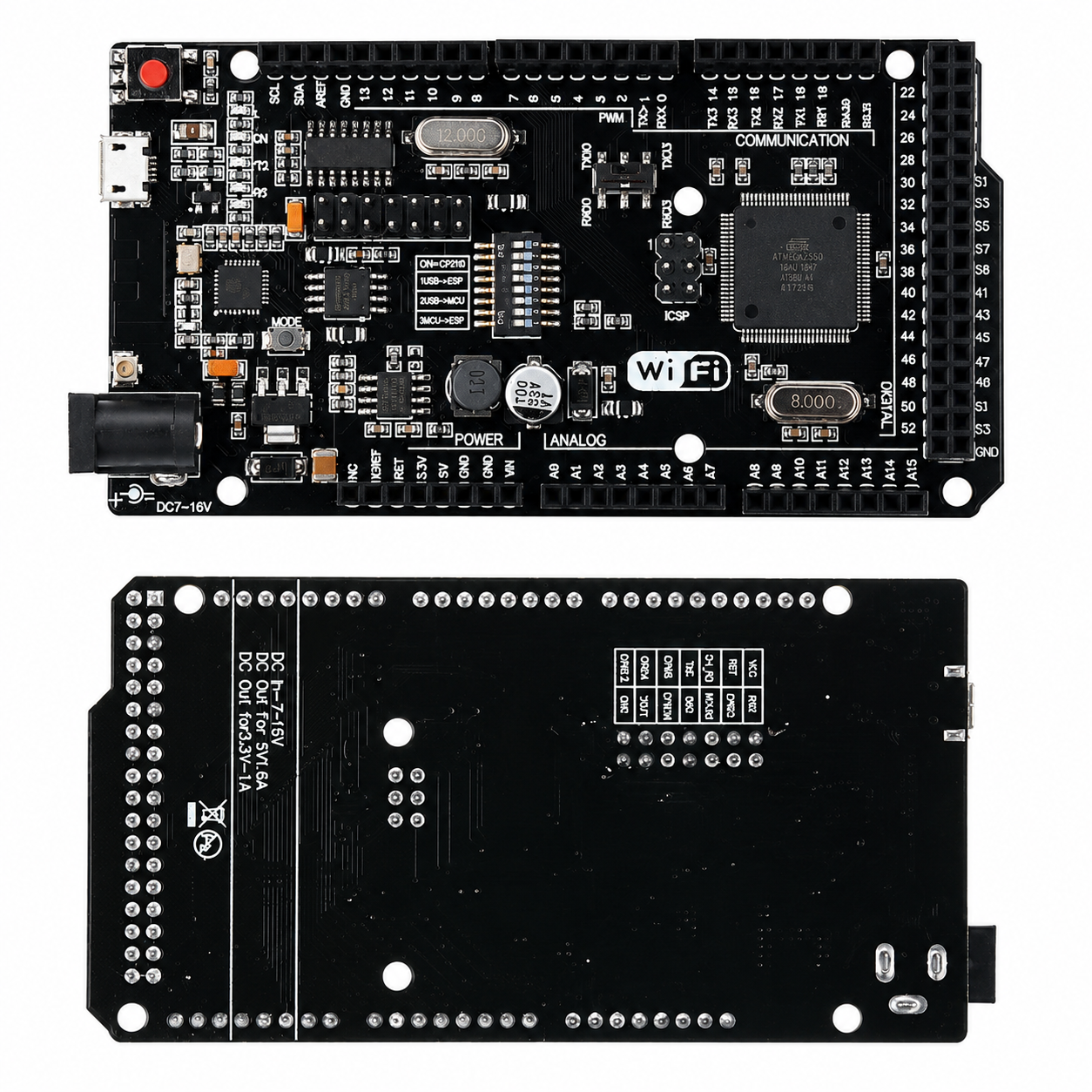

Arduino Mega + WiFi R3 ATmega2560 + ESP8266 Development Board with USB CH340G for IoT Projects

KSh2,200.00

● In stock (25 available)

SKU	AT-0035
Category	Development Boards
Availability	In stock
Shipping	Countrywide delivery · Free on orders over KSh10,000.00

Description

The Arduino Mega + WiFi R3 ATmega2560 + ESP8266 Development Board is an all-in-one solution that integrates the processing power of the ATmega2560 with the wireless capabilities of the ESP8266 WiFi module . Designed for advanced electronics and Internet of Things (IoT) applications, this board eliminates the need for separate WiFi modules while providing abundant GPIO, memory, and communication interfaces. The ATmega2560 microcontroller offers a large number of digital and analog I/O pins, making it ideal for complex projects involving multiple sensors, displays, motors, and communication devices. The onboard ESP8266 enables WiFi networking, allowing seamless connectivity to routers, cloud p

Key Features

Combines ATmega2560 and ESP8266 WiFi on a single board
Built-in WiFi connectivity for IoT applications
Compatible with Arduino IDE and ESP8266 development tools
Large number of digital and analog I/O pins
DIP switch configuration for flexible communication modes
Supports serial communication between ATmega2560 and ESP8266
USB interface for programming and power supply
Suitable for smart home, automation, and wireless control projects
Multiple communication protocols supported (UART, SPI, I2C)
Eliminates the need for a separate WiFi shield

Specifications

Main Microcontroller	ATmega2560
WiFi Module	ESP8266
Operating Voltage	5V
WiFi Standard	IEEE 802.11 b/g/n
Flash Memory (ATmega2560)	256KB
SRAM	8KB
EEPROM	4KB
Digital I/O Pins	54
PWM Outputs	15
Analog Inputs	16
Communication Interfaces	UART, SPI, I2C
USB-to-Serial Chip	CH340G
Programming Environment	Arduino IDE / ESP8266 IDE Support
