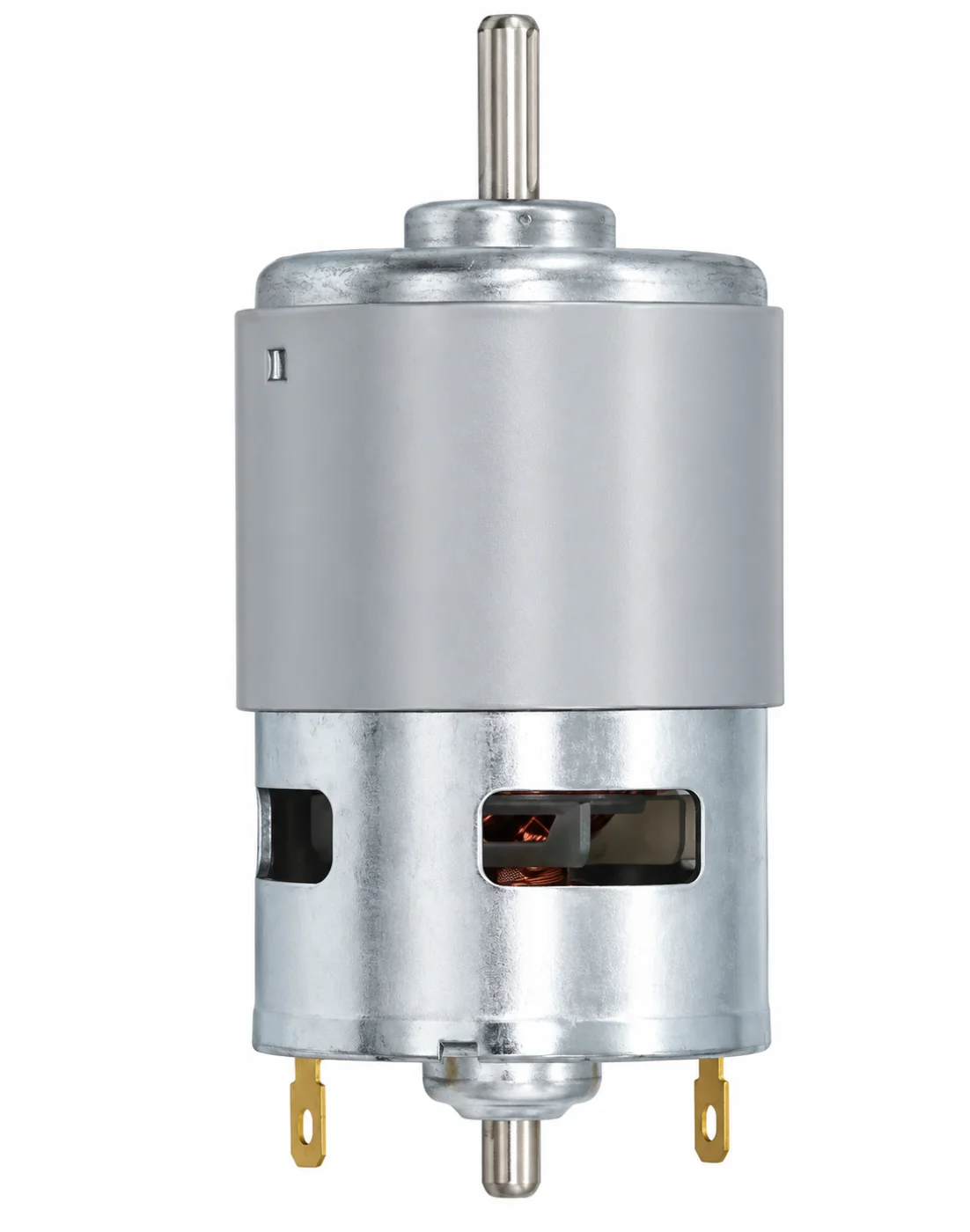

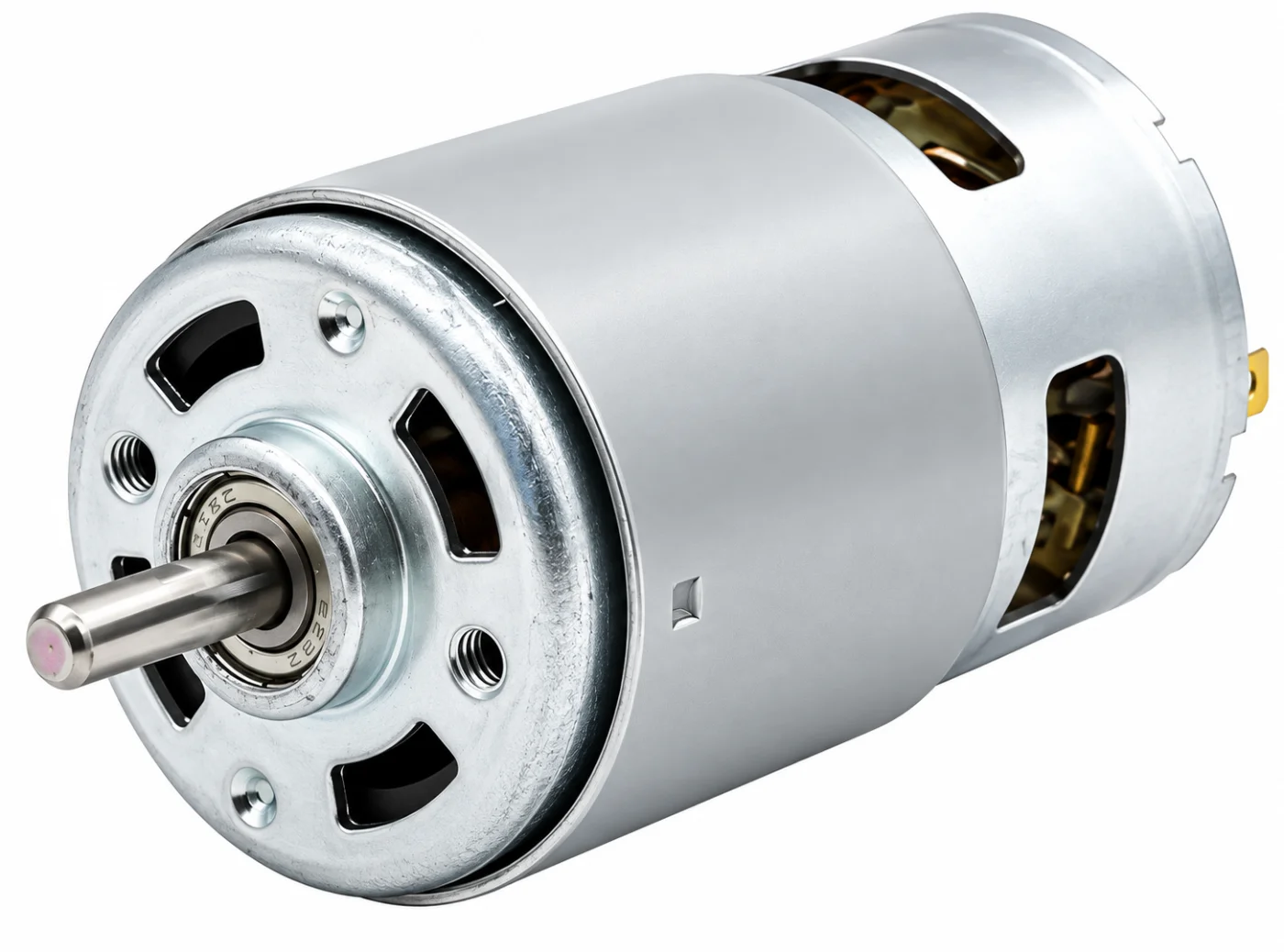

775 DC Spindle Motor 100W 12,000 RPM
● In Stock
| SKU | 775 DC Spindle Motor |
| Category | Actuators & Motors |
| Availability | In Stock |
| Shipping | Countrywide delivery · Free on orders over KSh10,000.00 |
Description
The 775 DC Spindle Motor 100W 12,000 RPM is a high-speed brushed DC motor designed for demanding DIY, robotics, machinery, and power-tool applications. Featuring dual ball bearings, the motor provides smooth rotation, improved durability, and stable performance during extended operation. With a compact cylindrical design and high rotational speed, this 775 motor is suitable for applications such as DIY lawn mower projects, mini power tools, polishing machines, drills, cutting machines, CNC projects, pumps, fans, and other mechanical systems. The motor is designed for use with an appropriate DC power supply or motor controller. Speed can be adjusted using a compatible PWM DC motor speed controller.
Key Features
- 775 high-speed DC motor
- Rated power: 100W
- Maximum/rated speed: 12,000 RPM
- Durable brushed DC motor construction
- Dual ball bearings for smooth operation
- High torque and high-speed performance
- Suitable for continuous-duty applications with appropriate cooling
- Compatible with PWM motor speed controllers
- Useful for DIY lawn mower and power-tool projects
- Suitable for robotics and automation
- Compact cylindrical form factor
- Designed for demanding mechanical applications
Specifications
| Specification Details | |
| Motor Type 775 Brushed DC Motor | |
| Motor Model 775 | |
| Rated Power 100W | |
| Rated Speed 12,000 RPM | |
| Bearing Type Dual Ball Bearing | |
| Motor Type Brushed DC | |
| Shaft Type Round metal shaft | |
| Shaft Diameter Approximately 5mm* | |
| Shaft Length Approximately 15–20mm* | |
| Body Diameter Approximately 42mm | |
| Body Length Approximately 67mm* | |
| Cooling Air cooled | |
| Direction Forward / Reverse | |
| Speed Control PWM compatible | |
| Applications Lawn mower, drill, CNC, robotics, polishing, DIY machinery | |
| Weight Approximately 400g |
What's in the Box
- 1 × 775 100W 12,000 RPM DC Motor
