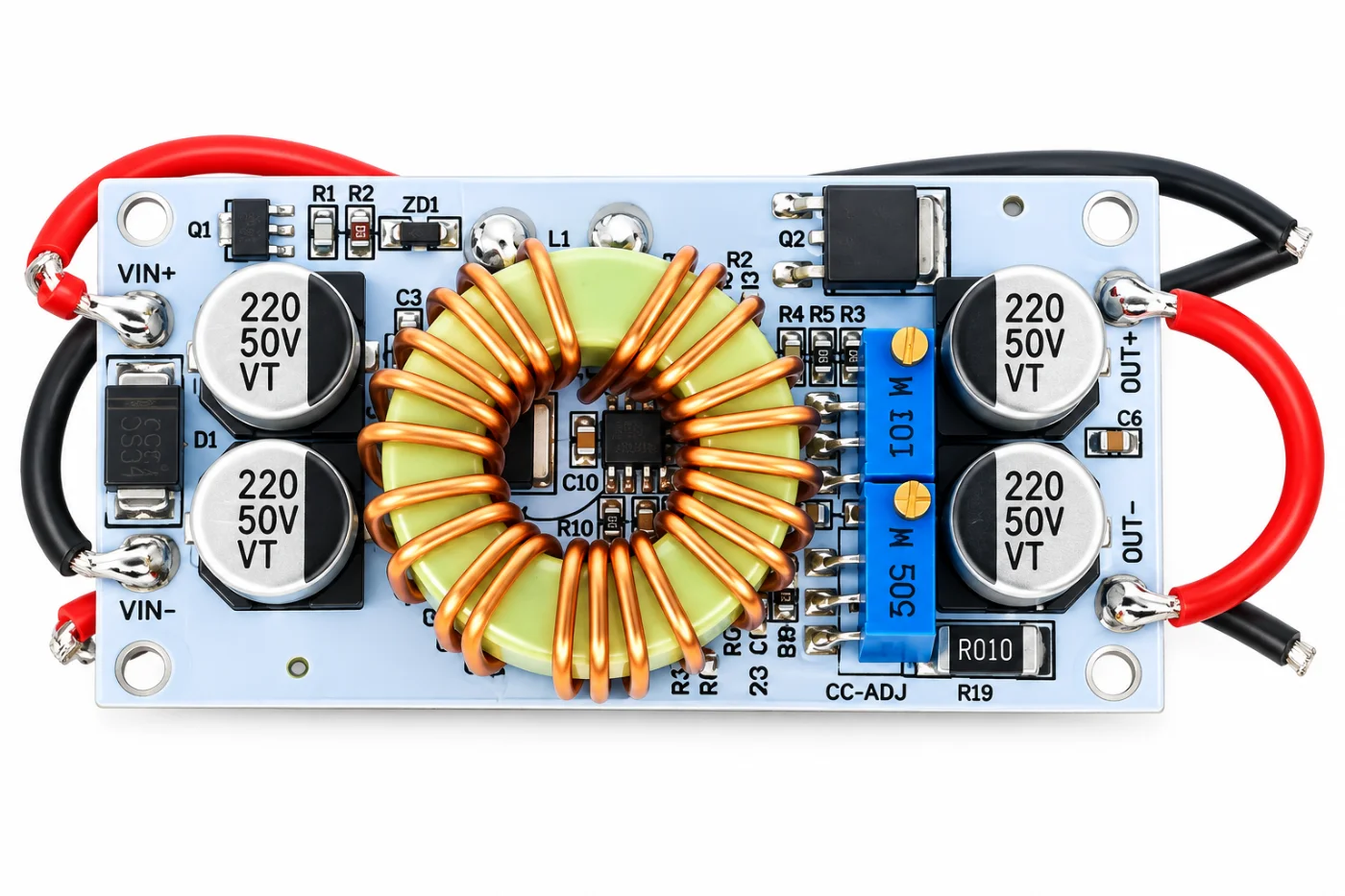

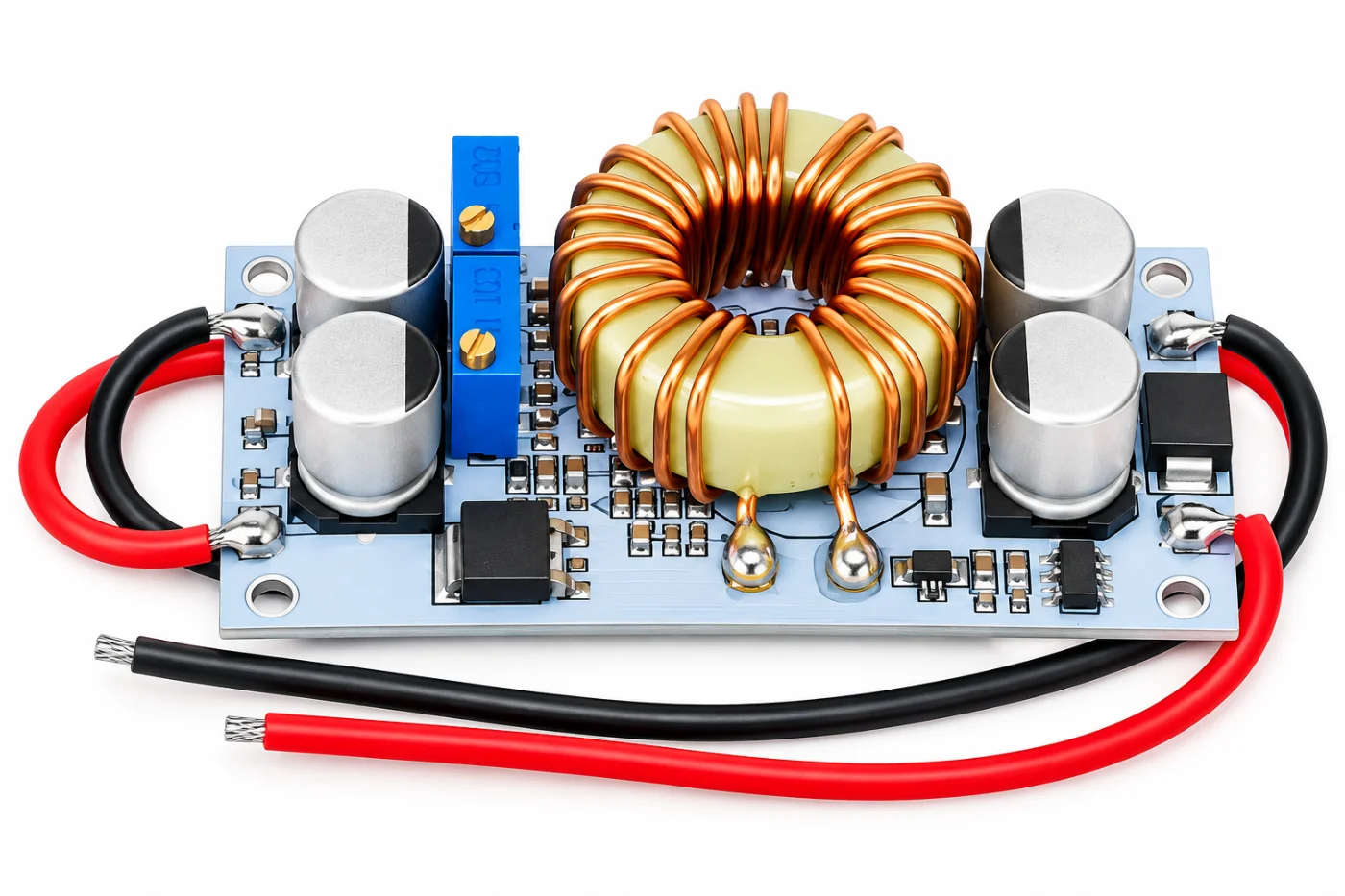

250W 10A DC-DC Boost Converter Module

Description

The 250W 10A DC-DC Boost Converter Module is a high-power, non-isolated step-up voltage regulator designed to convert a lower DC voltage into a higher adjustable output voltage. It supports both constant-voltage (CV) and constant-current (CC) operation, making it suitable for powering electronic equipment, driving high-power LEDs, battery charging applications, DIY power supplies, and mobile power systems. The module accepts a wide 8.5V–48V DC input and provides a continuously adjustable 10V–50V output. The output current limit can be adjusted from approximately 0.2A to 8A, while the module is commonly specified with a 10A maximum input-current rating. With efficiency of up to 96%, onboard over-current protection, reverse-polarity protection, and four mounting holes, this converter is suitable for both prototyping and permanent installations. At high current or power levels, adequate heatsinking and airflow are required.

Key Features

• 250W maximum power rating
• Non-isolated boost (step-up) converter
• Wide 8.5V–48V DC input voltage
• Adjustable 10V–50V DC output voltage
• Adjustable constant-current range of approximately 0.2A–8A
• 10A maximum input-current rating
• CV + CC operation
• Efficiency of up to 96%
• Suitable for high-power LED driving
• Useful for DIY adjustable power supplies
• Suitable for battery charging applications when correctly configured
• Input reverse-polarity protection
• Over-current protection
• Compact design with four mounting holes
• 150kHz switching frequency
• Requires additional cooling for sustained high-power operation
• Applications
• High-power LED driver
• DIY adjustable power supply
• Battery charging projects
• Solar power systems
• Mobile power supplies
• Car and automotive electronics
• Laptop and portable-device power supplies
• Arduino and electronics projects
• Robotics and automation
• Custom DC power systems

Specifications

What's in the Box

• 1 × 250W 10A DC-DC Boost Converter Module
